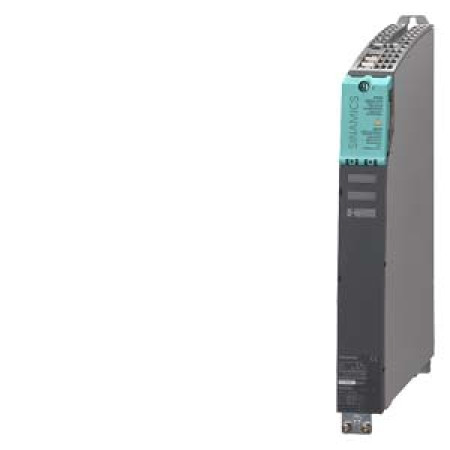

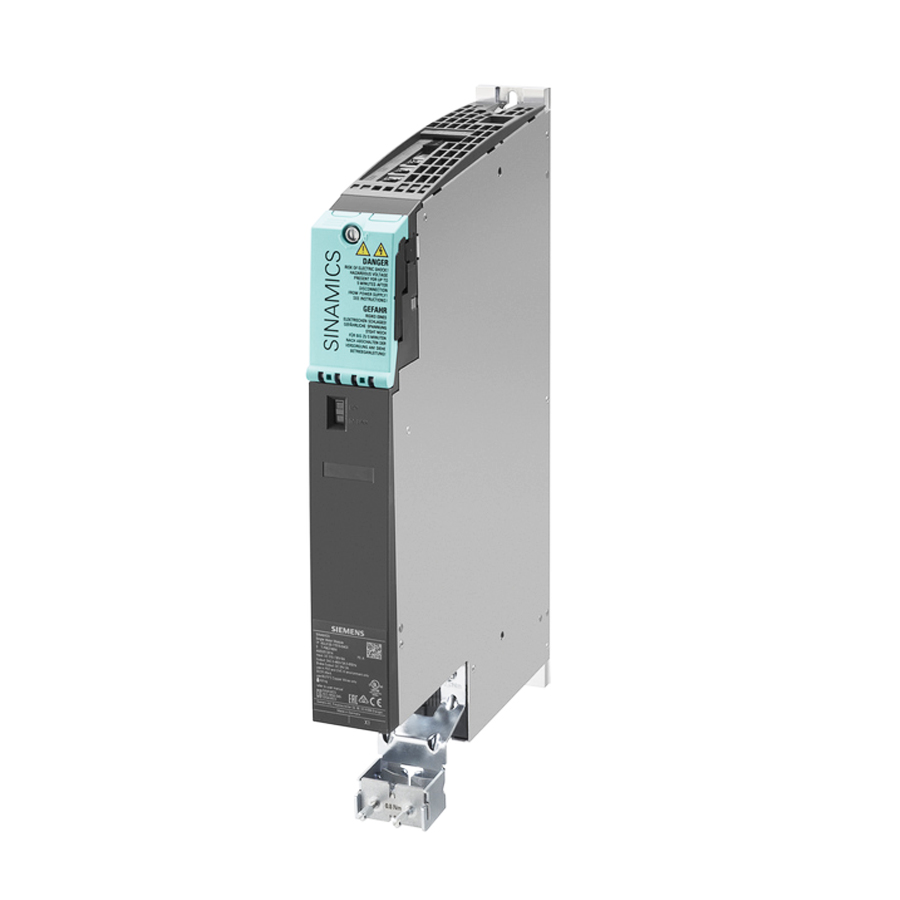

6SL3120-1TE15-0AA3

Single Motor Module

Siemens SINAMICS S120 Single Motor Module in booksize format, DC 600 V input, 3-phase 400 V output, 5 A rated output current (10 A max), 2.7 kW rated power, dimensions 50 x 380 x 270 mm, weight 5.1 kg.

• Rated Output Current: 5 A
• Maximum Output Current: 10 A
• DC Link Current: 6 A
• Rated Power: 2.7 kW
• Input Voltage: DC 600 V
• Output Voltage: 3-PH 400 V
• Dimensions: 50 x 380 x 270 mm
• Weight: 5.1 kg
