6ES7515-2FM01-0AB0

SIMATIC S7-1500F fail-safe CPU

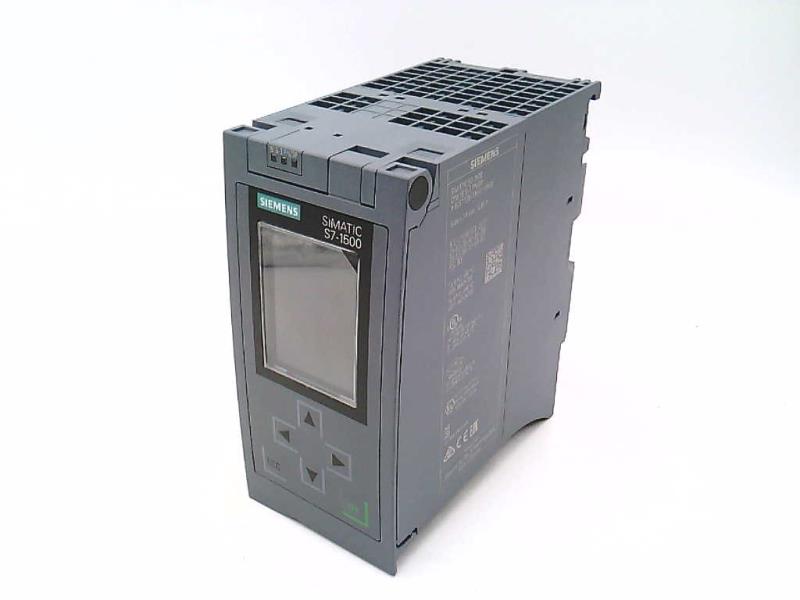

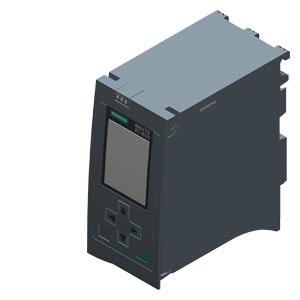

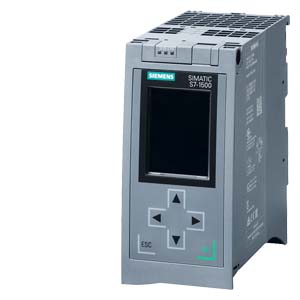

Siemens SIMATIC S7-1500F CPU 1515F-2 PN fail-safe central processing unit with a PROFINET IRT interface plus a second PROFINET RT interface, running standard and SIL 3 / PLe safety programs in one controller.

• Work memory: Program: 750 KB; Data: 3 MB; Load memory up to 32 GB via SIMATIC Memory Card
• Communication interfaces: 1st interface: PROFINET IRT with 2-port switch; 2nd interface: PROFINET RT
• Bit performance: 30 ns
• Supply voltage: 24 V DC (19.2-28.8 V DC)
• Current consumption: 0.8 A rated, 2.4 A inrush max
• Dimensions: 70 mm W x 147 mm H x 129 mm D
• Weight: Approximately 830 g
• Operating temperature: 0-60°C horizontal mounting, 0-40°C vertical mounting
• Safety rating: SIL 3 / PLe per ISO 13849-1
