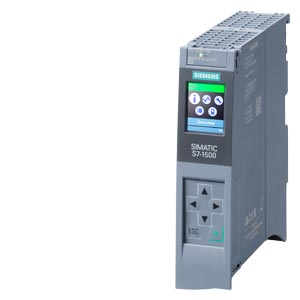

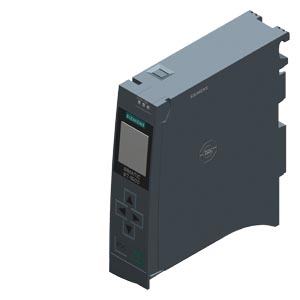

6ES7513-1FL01-0AB0

SIMATIC S7-1500F fail-safe CPU

Siemens SIMATIC S7-1500F CPU 1513F-1 PN fail-safe central processing unit, a later hardware version combining standard and safety-related program execution with an integrated PROFINET interface.

• Work memory: Program: 450 KB; Data: 1.5 MB; Load memory up to 32 GB via SIMATIC Memory Card
• Communication interface: 1 PROFINET interface with 2-port integrated switch, RJ45 Ethernet 100 Mbps, supports IRT and RT protocols
• Supply voltage: 24 V DC (19.2-28.8 V permissible range)
• Current consumption: 0.7 A rated, 0.95 A max
• Dimensions: 35 mm W x 147 mm H x 129 mm D
• Weight: 430 g
• Operating temperature: 0-60°C horizontal mounting, 0-40°C vertical mounting
• Safety rating: Up to SIL 3 and Performance Level e
